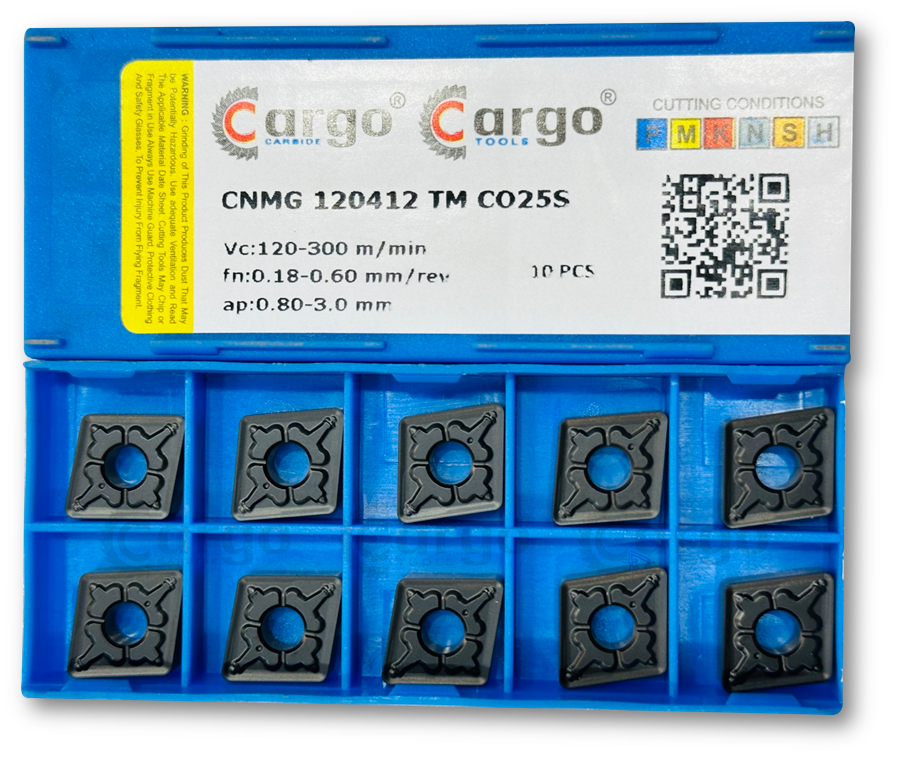

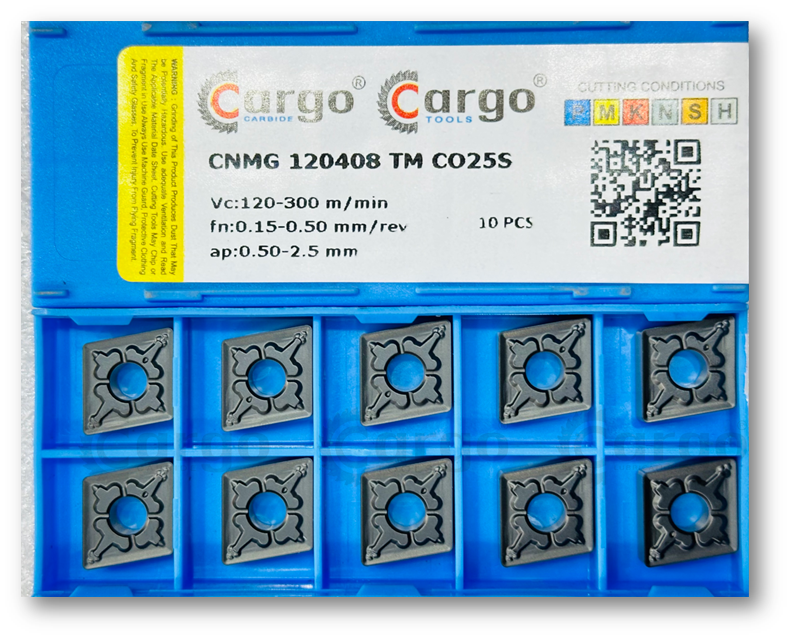

Cargo Carbide CNMG TM-25 Steel Inserts are carbide cutting inserts developed for CNC turning applications involving steel components. The CNMG format provides a robust negative insert configuration, while the TM-25 designation identifies this product as a specific option within the Cargo Carbide steel-turning insert range.

CNMG TM-25 inserts are intended for suitable steel turning operations such as external diameter turning, facing, step turning and general production machining. The CNMG insert format provides multiple usable cutting edges, helping manufacturers utilize the insert efficiently during repeated CNC machining operations.

The TM-25 configuration should be selected according to the actual steel material, component geometry and machining conditions. Cutting speed, feed rate, depth of cut, insert size, nose radius and machine rigidity should be considered when establishing the correct cutting setup.

Cargo Carbide CNMG TM-25 Steel Inserts are suitable for CNC lathes and turning centres used in automotive components, engineering parts, industrial machinery and general CNC production.

Product Specifications

Applications

1. Steel CNC Turning

Suitable for appropriate CNC turning conditions involving steel workpieces.

2. External Diameter Turning

For machining the outside diameter of shafts, bushes, sleeves and other cylindrical steel components.

3. Facing

Suitable for machining flat end faces during CNC turning operations.

4. Step Turning

Useful for producing multiple diameters, shoulders and stepped component profiles.

5. General Production Turning

Suitable for repetitive CNC machining where efficient carbide insert utilization is important.

Typical Industries

• Automotive component manufacturing
• General engineering
• Machine component manufacturing
• Industrial machinery
• CNC job work
• Precision engineering
• Component manufacturing

Key Benefits

• Designed for steel CNC turning
• TM-25 configuration for steel machining
• Robust CNMG negative insert format
• 80° rhombic insert design
• Multiple usable cutting edges
• Suitable for turning and facing operations
• Useful for repetitive production machining
• Suitable for CNC lathes and turning centres
• Can be selected according to workpiece and machining conditions

FAQs

1. What is a CNMG TM steel insert?

A CNMG TM-25 steel insert is a carbide CNC turning insert using the CNMG format with the TM-25 designation, intended for suitable steel machining applications.

2. What is the CNMG TM insert used for?

It is designed for suitable steel CNC turning applications such as external diameter turning, facing, step turning and general production machining.

3. Can CNMG TM be used on a CNC lathe?

Yes. The product is intended for CNC turning applications. The correct insert size, nose radius and cutting parameters should be selected according to the machine and workpiece.

4. What factors should be considered when selecting a CNMG TM insert?

Consider the steel grade, cutting speed, feed rate, depth of cut, component geometry, machine rigidity, insert size and nose radius. These factors help determine the appropriate machining configuration.

5. What are the advantages of the CNMG insert format?

CNMG is an 80° rhombic negative insert format with multiple usable cutting edges. This configuration is commonly suited to production turning where a robust cutting setup and efficient insert utilization are required.
