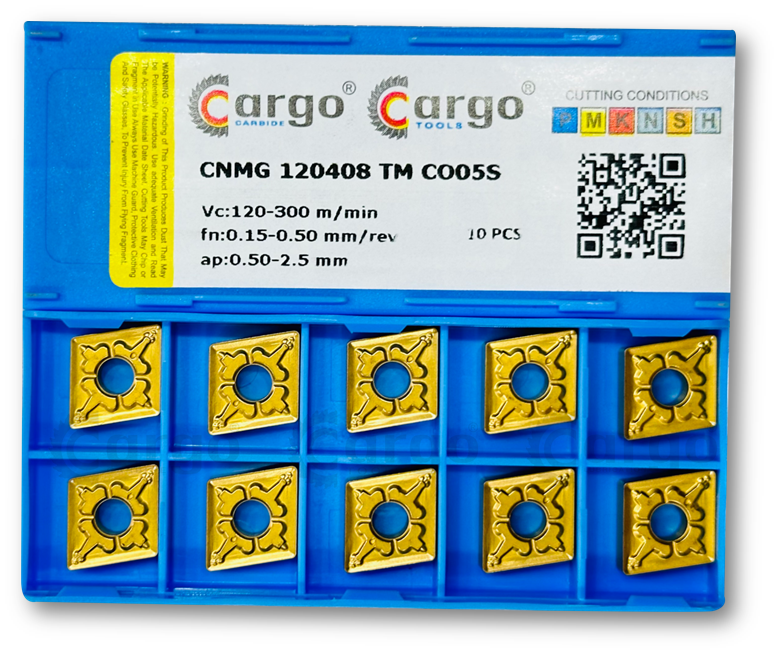

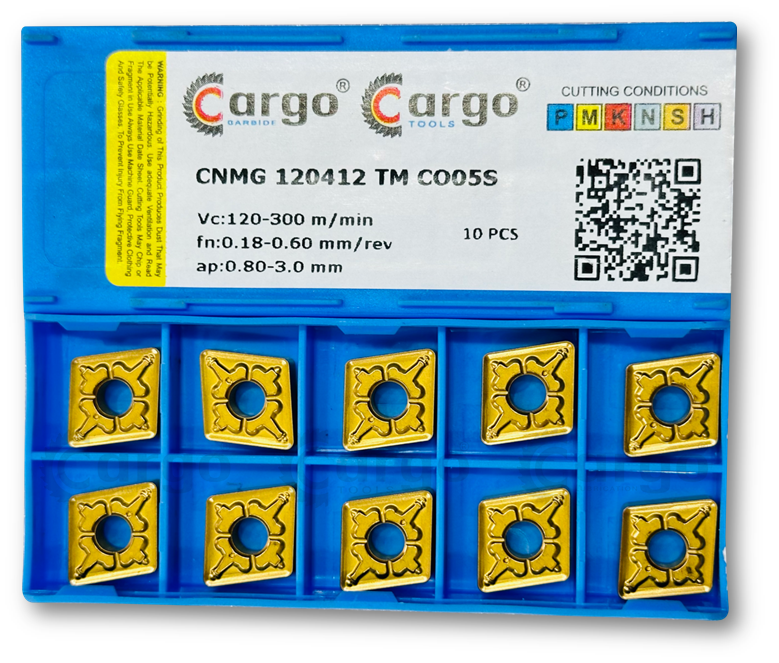

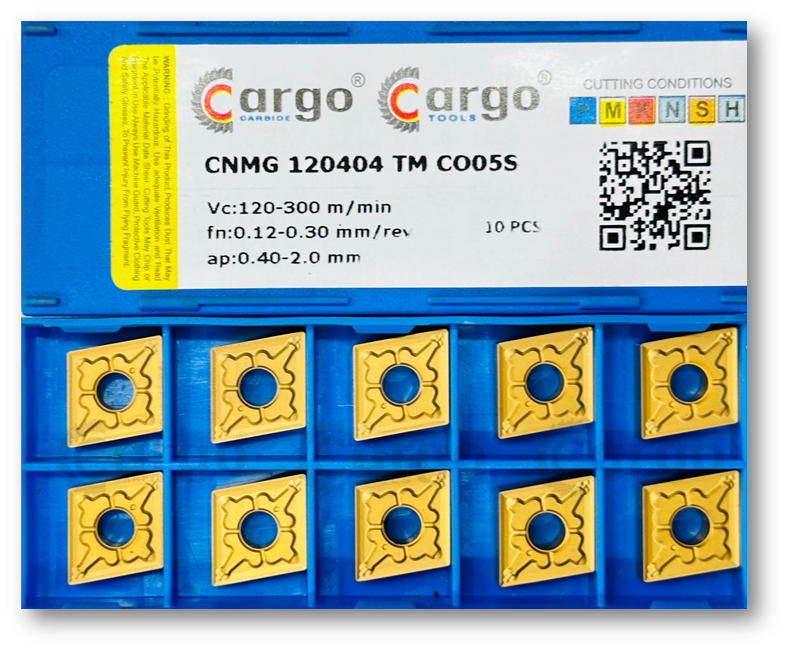

Cargo Carbide CNMG TM-05 Steel Inserts are carbide turning inserts developed for CNC machining of steel components. The CNMG format provides a strong negative insert configuration, while the TM-05 designation gives this product a specific position within the Cargo Carbide steel-turning insert range.

The CNMG TM-05 insert is intended for suitable steel turning operations, including external diameter turning, facing, step turning and general production machining. Its CNMG format offers multiple usable cutting edges, making it practical for CNC manufacturers looking to maintain efficient insert utilization during repeated machining work.

The TM-05 configuration should be selected according to the actual steel being machined and the operating conditions of the CNC machine. Factors such as cutting speed, feed rate, depth of cut, insert size, nose radius and machine rigidity should be considered when determining the appropriate setup.

Cargo Carbide CNMG TM-05 Steel Inserts are suitable for CNC lathes and turning centres used in automotive components, engineering parts, machinery components and general industrial production.

Product Specifications

Applications

1. Steel CNC Turning

Suitable for appropriate CNC turning conditions involving steel workpieces.

2. External Diameter Turning

For machining the outside diameter of shafts, bushes, sleeves and other cylindrical steel components.

3. Facing

Suitable for machining end faces during CNC turning operations.

4. Step Turning

Useful for producing multiple diameters, shoulders and stepped profiles.

5. General Production Machining

Suitable for repeated CNC turning where efficient carbide insert utilization is important.

Typical Industries

• Automotive component manufacturing
• General engineering
• Machinery component manufacturing
• Industrial equipment
• CNC job work
• Precision component manufacturing
• Engineering workshops

Key Benefits

• Designed for steel CNC turning
• TM-05 configuration for steel machining
• Strong CNMG negative insert format
• 80° rhombic insert design
• Multiple usable cutting edges
• Suitable for turning and facing
• Useful for repetitive production machining
• Suitable for CNC lathes and turning centres
• Can be matched to the machining condition and workpiece material

FAQs

1. What is a CNMG TM-05 steel insert?

A CNMG TM-05 steel insert is a carbide CNC turning insert using the CNMG format with the TM-05 designation, intended for suitable steel machining applications.

2. What is the CNMG TM-05 insert used for?

It is intended for suitable steel CNC turning operations such as external diameter turning, facing, step turning and general production machining.

3. Can CNMG TM-05 be used on a CNC lathe?

Yes. The product is intended for CNC turning applications. The correct insert size, nose radius and cutting parameters should be selected according to the machine and workpiece.

4. What should I consider when selecting a CNMG TM-05 insert?

Consider the steel grade, depth of cut, feed rate, cutting speed, machine rigidity, component geometry, insert size and nose radius. These factors help determine the appropriate configuration for the machining operation.

5. What is the advantage of the CNMG insert format?

CNMG is an 80° rhombic negative insert format that provides a robust cutting configuration and multiple usable cutting edges, making it suitable for many production turning applications.
